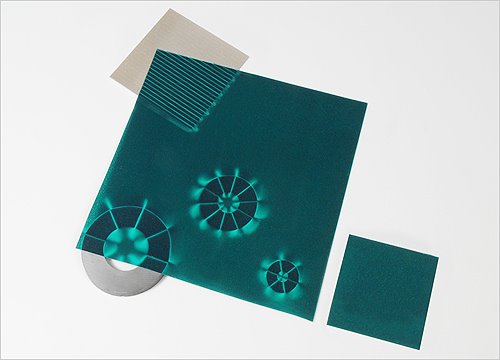

Viewer Sheet

This is used to check the magnetic pattern of permanent magnets. The magnetic force lines can also be seen clearly.

Viewer Sheet is made by dispersing magnetic fluid uniformly as a film shaped sheet. Magnetic fluid reacts when contacting the Viewer sheet to generating part of the magnetic force lines, and the strength of the magnetic force lines and the borderline between the magnetic poles can be evaluated according to the distribution condition. Magnetic force lines of multi-pole magnetizing (pattern with many N and S poles) can also be seen clearly, because the borderline of a magnetic pole with weak magnetism is white (light) and the magnetic pole part with stronger magnetism is dark.
Viewer Sheet
Part No. Size
MV0010-C01 100mm*100mm, square of 10cm(Green)
MV0010-C02 300mm*300mm (Green)
