Product Information

Magnetic Catch

A magnetic catch is ideal for securing a cover or door!
We can supply not only the standard product but also manufacture special products.

It is suitable to fix a cabinet, TV rack and a front door, side door, cover of OA equipments such as a copier.
There are various types such as the standard type attached with screws, the type that can be attached by inserting into a hole, the type with a switch to turn an electric current ON and OFF, and stronger type applications that requires a Neodymium magnet.
We have various standard products. We also design and produce special order products to your specification.

Magnetic catch (Standard product) RoHS compliant

It is the standard magnetic catch product used for various applications such as attaching and securing covers and door etc.
We also design and produce special order products to your specification.

Benefit: It is effective when pulling a SPCC yoke (strike plate) through a brass connector.

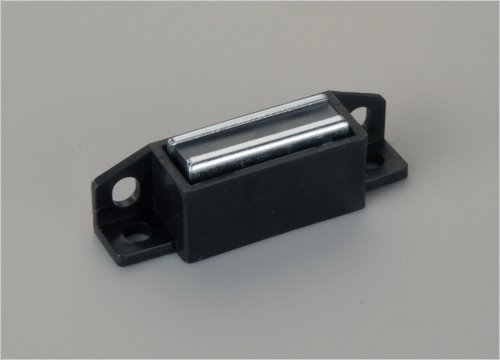

Magnetic Catch (ชนิดมาตรฐาน) CA-0124A Magnetic catch (Standard type)
  • Material
    Magnet: Ferrite　Case: PP　Yoke: SPCC
  • Attraction: 44±7N
  • An economical type with a reasonable price.
  • There is the stronger type using a Neodymium magnet.
    CA-0147A . Attraction: 78.4±10N

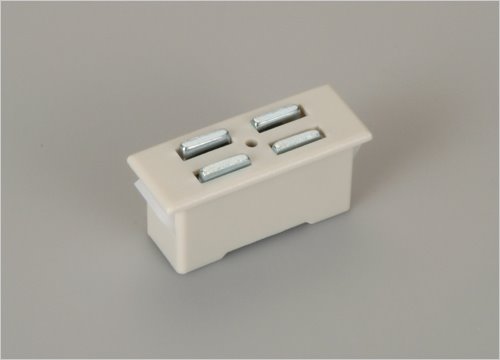

Magnetic Catch (ชนิดเสียบ) CA-0123A Magnetic catch (Insertion type)
  • Material
    Magnet: Ferrite　Case: PP　Yoke: SPCC
  • Attraction: 44±7N
  • It is a magnetic catch attached without screws by inserting into a mounting hole.

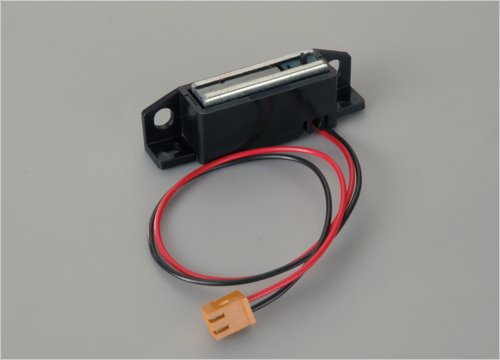

Magnetic Catch (มีสวิตซ์) CA-0111A Magnetic catch (With switch)
  • Material
    Magnet: Ferrite　Case: PP　Yoke: SPCC
  • Attraction: More than 19N
  • The switch and magnetic catch are integrated.
    Connection is by a one touch system.

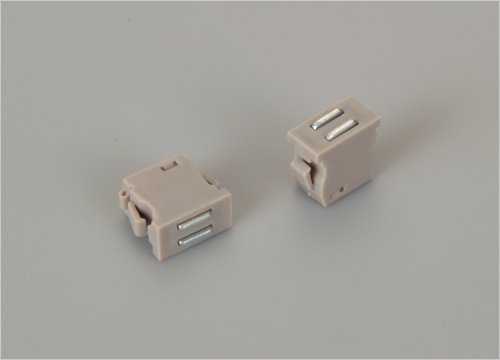

Magnetic Catch (ขนาดไมโคร) CA-0143A Magnetic catch (Micro-size)
  • Material
    Magnet: Ferrite　Case: PA　Yoke: SPCC
  • Attraction: 5.29±1.17N
  • The power is very strong even though it is physically small.
  • It can be attached easily by inserting into the mounting hole.

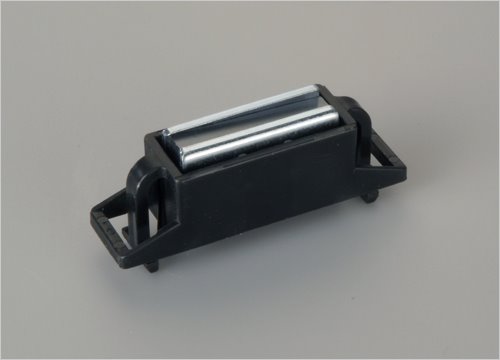

Magnetic Catch (ชนิดนำกลับมาใช้ใหม่) CA-0149A Magnetic catch (Recycle type)
  • Material
    Magnet: Ferrite　Case: PA　Yoke: SPCC
    Stopper: POM
  • Attraction: 25.5±7.8N
  • It can be attached easily by inserting into the mounting hole.
  • It can be removed easily by using the special removal jig, and reused.
  • There is a stronger type using a Neodymium magnet.

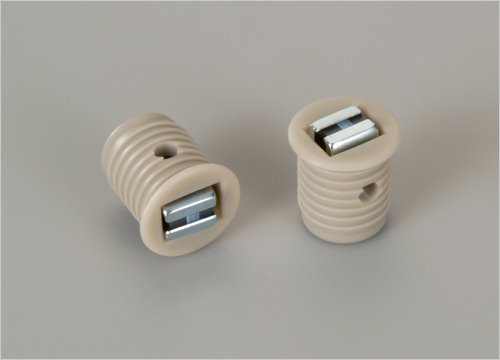

Magnetic Catch (แบบกลม) CA-0187A Magnetic catch (Round shape)
  • Material
    Magnet: Ferrite　Case: PA　Yoke: SPCC
  • Attraction: 15.7±4N
  • It can be attached easily by inserting into the mounting hole.
  • There is a type using a rubber magnet (CA-0164).

Benefit: It is effective when pulling a SPCC yoke (strike plate) through a brass connector.

Magnetic Catch (Standard type)
Part No. Item
CA-0124A Magnetic Catch (Standard type)
To the top page
Magnetic Catch (Microsize)
Part No. Item
CA-0143A Magnetic Catch (Microsize)
To the top page
Magnetic Catch (Recycle size)
Part No. Item
CA-0149A Magnetic Catch (Recycle size)
To the top page
