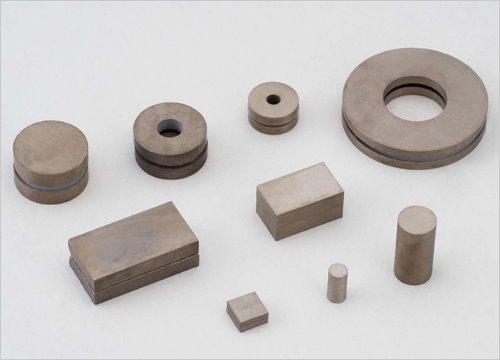

Samarium-Cobalt Magnet (Sm - Co)
With high magnetic characteristics similar to Neodymium magnets. Suitable for applications in harsh environments, such as rust or high temperature!
It is composed of cobalt and samarium, which are rare-earth elements.A Samarium-cobalt magnet has highest magnetic characteristics next to Neodymium magnets.
It has advantages as it has greater anti-rust and heat resistant properties.
On the other hand, a Samarium-cobalt magnet is easily broken because it is brittle, so it must to be handled carefully. It is suitable for sensors and medical devices, etc.
Shape
 |
 |
 |
|---|---|---|
| Column type | Ring shape | Square shape |
Samarium-Cobalt Magnet (Sm-Co) Column type
| Product code | Dimensions (mm)(dimensions order) | Magnetization direction | Surface treatment | Grade | Surface Magnetic Flux Density | Attraction |
|---|---|---|---|---|---|---|
| MCT0001 | φ0.8x2 | Vertical radius | Not plating | 28 | 127ｍT | 0.01kgf |
| MCT0002 | φ1x2 | Vertical radius | Not plating | 28 | 165ｍT | 0.02kgf |
| MCT0003 | φ1x5 | Vertical radius | Not plating | 28 | 174ｍT | 0.02kgf |
| MCT0004 | φ1.85x3 | Horizontal radius | Not plating | 28 | 335ｍT | - |
| MCT0005 | φ2x0.5 | Vertical radius | Not plating | 28 | 148ｍT | 0.04kgf |
| MCT0006 | φ2x0.6 | Vertical radius | Not plating | 28 | 167ｍT | 0.04kgf |
| MCT0007 | φ2x2 | Vertical radius | Not plating | 28 | 274ｍT | 0.09kgf |
| MCT0008 | φ2x2 | Vertical radius | Not plating | 28 | 274ｍT | 0.09kgf |
| MCT0009 | φ2x3 | Vertical radius | Not plating | 28 | 293ｍT | 0.11kgf |
| MCT0010 | φ2x3 | Vertical radius | Not plating | 28 | 293ｍT | 0.11kgf |
| MCT0011 | φ2x9 | Horizontal radius | Not plating | 28 | 322ｍT | - |
| MCT0012 | φ2.5x3 | Vertical radius | Not plating | 28 | 320ｍT | 0.16kgf |
| MCT0013 | φ3x0.7 | Vertical radius | Not plating | 28 | 171ｍT | 0.09kgf |
| MCT0014 | φ3x1 | Vertical radius | Not plating | 28 | 217ｍT | 0.1kgf |
| MCT0015 | φ3x1 | Vertical radius | Not plating | 28 | 217ｍT | 0.1kgf |
| MCT0016 | φ3x1 | Vertical radius | Not plating | 28 | 217ｍT | 0.1kgf |
| MCT0017 | φ3x1.3 | Vertical radius | Not plating | 28 | 251ｍT | 0.12kgf |
| MCT0018 | φ3x1.5 | Vertical radius | Not plating | 28 | 269ｍT | 0.14kgf |
| MCT0019 | φ3x2 | Vertical radius | Not plating | 28 | 301ｍT | 0.18kgf |
| MCT0020 | φ3x2 | Vertical radius | Not plating | 28 | 301ｍT | 0.18kgf |
| MCT0021 | φ3x2 | Vertical radius | Not plating | 28 | 301ｍT | 0.18kgf |
| MCT0022 | φ3x3 | Vertical radius | Not plating | 28 | 335ｍT | 0.22kgf |
| MCT0023 | φ3x3 | One sided 2-pole | Not plating | 28 | 200ｍT | - |
| MCT0024 | φ3x4 | Vertical radius | Not plating | 28 | 351ｍT | 0.25kgf |
| MCT0025 | φ3x5 | Vertical radius | Not plating | 28 | 360ｍT | 0.26kgf |
| MCT0026 | φ3x6.5 | Vertical radius | Not plating | 28 | 367ｍT | 0.27kgf |
| MCT0027 | φ3x8 | Vertical radius | Not plating | 28 | 371ｍT | 0.27kgf |
| MCT0028 | φ3x9 | Vertical radius | Not plating | 28 | 373ｍT | 0.27kgf |
| MCT0029 | φ3x10 | Vertical radius | Not plating | 28 | 374ｍT | 0.28kgf |
| MCT0030 | φ4x0.7 | Vertical radius | Not plating | 28 | 148ｍT | 0.12kgf |
| MCT0031 | φ4x0.8 | Vertical radius | Not plating | 28 | 165ｍT | 0.14kgf |
| MCT0032 | φ4x0.9 | Vertical radius | Not plating | 28 | 181ｍT | 0.16kgf |
| MCT0033 | φ4x1 | Vertical radius | Not plating | 28 | 195ｍT | 0.17kgf |
| MCT0034 | φ4x1.5 | Vertical radius | Not plating | 28 | 255ｍT | 0.19kgf |
| MCT0035 | φ4x2 | Vertical radius | Not plating | 28 | 295ｍT | 0.26kgf |
| MCT0036 | φ4x2 | Vertical radius | Not plating | 28 | 295ｍT | 0.26kgf |
| MCT0037 | φ4x2 | Vertical radius | Not plating | 28 | 295ｍT | 0.26kgf |
| MCT0038 | φ4x3 | Vertical radius | Not plating | 28 | 344ｍT | 0.35kgf |
| MCT0039 | φ4x3 | One sided 2-pole | Not plating | 28 | 267ｍT | - |
| MCT0040 | φ4x3 | Vertical radius | Not plating | 28 | 344ｍT | 0.35kgf |
| MCT0041 | φ4x3 | Vertical radius | Not plating | 28 | 344ｍT | 0.35kgf |
| MCT0042 | φ4x4 | Vertical radius | Not plating | 28 | 369ｍT | 0.41kgf |
| MCT0043 | φ4x4 | Vertical radius | Not plating | 28 | 369ｍT | 0.41kgf |
| MCT0044 | φ4x5 | Vertical radius | Not plating | 28 | 383ｍT | 0.44kgf |
| MCT0045 | φ4x5 | Vertical radius | Not plating | 28 | 383ｍT | 0.44kgf |
| MCT0046 | φ4x5 | Vertical radius | Not plating | 28 | 383ｍT | 0.44kgf |
| MCT0047 | φ4x8.5 | Vertical radius | Not plating | 28 | 403ｍT | 0.49kgf |
| MCT0048 | φ4x10 | Vertical radius | Not plating | 28 | 406ｍT | 0.49kgf |
| MCT0049 | φ4x16 | Vertical radius | Not plating | 28 | 411ｍT | 0.51kgf |
| MCT0050 | φ4x27 | Vertical radius | Not plating | 28 | 414ｍT | 0.51kgf |
| MCT0051 | φ5x1 | Vertical radius | Not plating | 28 | 172ｍT | 0.22kgf |
| MCT0052 | φ5x1.5 | Vertical radius | Not plating | 28 | 233ｍT | 0.29kgf |
| MCT0053 | φ5x2 | Vertical radius | Not plating | 28 | 278ｍT | 0.32kgf |
| MCT0054 | φ5x2 | Horizontal radius | Not plating | 28 | 419ｍT | - |
| MCT0055 | φ5x3 | Vertical radius | Not plating | 28 | 337ｍT | 0.48kgf |
| MCT0056 | φ5x3 | One sided 2-pole | Not plating | 28 | 280ｍT | - |
| MCT0057 | φ5x3.5 | Vertical radius | Not plating | 28 | 355ｍT | 0.54kgf |
| MCT0058 | φ5x4 | Vertical radius | Not plating | 28 | 370ｍT | 0.58kgf |
| MCT0059 | φ5x5 | Vertical radius | Not plating | 28 | 389ｍT | 0.65kgf |
| MCT0060 | φ5x5 | Vertical radius | Not plating | 28 | 389ｍT | 0.65kgf |
| MCT0061 | φ5x8 | Vertical radius | Not plating | 28 | 416ｍT | 0.74kgf |
| MCT0062 | φ5x10 | Vertical radius | Not plating | 28 | 423ｍT | 0.77kgf |
| MCT0063 | φ5x25 | Vertical radius | Not plating | 28 | 435ｍT | 0.81kgf |
| MCT0064 | φ5.5x0.5 | Vertical radius | Not plating | 28 | 87ｍT | 0.1kgf |
| MCT0065 | φ5.5x0.6 | Vertical radius | Not plating | 28 | 104ｍT | 0.13kgf |
| MCT0066 | φ5.5x0.7 | Vertical radius | Not plating | 28 | 119ｍT | 0.16kgf |
| MCT0067 | φ5.9x3.5 | Vertical radius | Not plating | 28 | 346ｍT | 0.67kgf |
| MCT0068 | φ6x1 | Vertical radius | Not plating | 28 | 152ｍT | 0.27kgf |
| MCT0069 | φ6x2 | Vertical radius | Not plating | 28 | 258ｍT | 0.44kgf |
| MCT0070 | φ6x2 | Vertical radius | Not plating | 28 | 258ｍT | 0.44kgf |
| MCT0071 | φ6x2 | Vertical radius | Not plating | 28 | 258ｍT | 0.44kgf |
| MCT0072 | φ6x3 | Vertical radius | Not plating | 28 | 323ｍT | 0.59kgf |
| MCT0073 | φ6x3 | Vertical radius | Not plating | 28 | 323ｍT | 0.59kgf |
| MCT0074 | φ6x3 | Vertical radius | Not plating | 28 | 323ｍT | 0.59kgf |
| MCT0075 | φ6x4 | Vertical radius | Not plating | 28 | 362ｍT | 0.76kgf |
| MCT0076 | φ6x5 | Vertical radius | Not plating | 28 | 387ｍT | 0.87kgf |
| MCT0077 | φ6x6 | Vertical radius | Not plating | 28 | 404ｍT | 0.94kgf |
| MCT0078 | φ6x6.5 | Horizontal radius | Not plating | 28 | 475ｍT | - |
| MCT0079 | φ6x9.5 | Vertical radius | Not plating | 28 | 431ｍT | 1.07kgf |
| MCT0080 | φ6x10 | Vertical radius | Not plating | 28 | 433ｍT | 1.08kgf |
| MCT0081 | φ6x21.8 | Vertical radius | Not plating | 28 | 449ｍT | 1.16kgf |
| MCT0082 | φ7x1.5 | Vertical radius | Not plating | 28 | 191ｍT | 0.47kgf |
| MCT0083 | φ7x3 | Vertical radius | Not plating | 28 | 306ｍT | 0.69kgf |
| MCT0084 | φ7x3 | Vertical radius | Not plating | 28 | 306ｍT | 0.69kgf |
| MCT0085 | φ7x3 | Vertical radius | Not plating | 28 | 306ｍT | 0.69kgf |
| MCT0086 | φ7x8 | Vertical radius | Not plating | 28 | 424ｍT | 1.36kgf |
| MCT0087 | φ8x1 | Vertical radius | Not plating | 28 | 122ｍT | 0.33kgf |
| MCT0088 | φ8x2 | Vertical radius | Not plating | 28 | 218ｍT | 0.7kgf |
| MCT0089 | φ8x2 | Horizontal radius | Not plating | 28 | 437ｍT | - |
| MCT0090 | φ8x3 | Vertical radius | Not plating | 28 | 288ｍT | 0.77kgf |
| MCT0091 | φ8x3 | Vertical radius | Not plating | 28 | 288ｍT | 0.77kgf |
| MCT0092 | φ8x3 | Vertical radius | Not plating | 28 | 288ｍT | 0.77kgf |
| MCT0093 | φ8x5 | Vertical radius | Not plating | 28 | 369ｍT | 1.29kgf |
| MCT0094 | φ8x5 | Vertical radius | Not plating | 28 | 369ｍT | 1.29kgf |
| MCT0095 | φ8x5 | Vertical radius | Not plating | 28 | 369ｍT | 1.29kgf |
| MCT0096 | φ8x7 | Vertical radius | Not plating | 28 | 409ｍT | 1.6kgf |
| MCT0097 | φ8x10 | Vertical radius | Not plating | 28 | 438ｍT | 1.83kgf |
| MCT0098 | φ9x2 | Vertical radius | Not plating | 28 | 201ｍT | 0.81kgf |
| MCT0099 | φ9x3 | Vertical radius | Not plating | 28 | 271ｍT | 0.99kgf |
| MCT0100 | φ9.5x1.5 | Vertical radius | Not plating | 28 | 152ｍT | 0.64kgf |
| MCT0101 | φ9.5x2 | Vertical radius | Not plating | 28 | 194ｍT | 0.86kgf |
| MCT0102 | φ9.5x4 | Vertical radius | Not plating | 28 | 314ｍT | 1.25kgf |
| MCT0103 | φ10x2 | Vertical radius | Not plating | 28 | 186ｍT | 0.91kgf |
| MCT0104 | φ10x3.5 | Vertical radius | Not plating | 28 | 282ｍT | 1.23kgf |
| MCT0105 | φ10x4 | Vertical radius | Not plating | 28 | 306ｍT | 1.3kgf |
| MCT0106 | φ10x5 | Vertical radius | Not plating | 28 | 344ｍT | 1.67kgf |
| MCT0107 | φ10x6 | Vertical radius | Not plating | 28 | 373ｍT | 1.97kgf |
| MCT0108 | φ10x8 | Vertical radius | Not plating | 28 | 410ｍT | 2.4kgf |
| MCT0109 | φ10x10 | Vertical radius | Not plating | 28 | 432ｍT | 2.67kgf |
| MCT0110 | φ11x5 | Vertical radius | Not plating | 28 | 331ｍT | 1.83kgf |
| MCT0111 | φ12x5 | Vertical radius | Not plating | 28 | 318ｍT | 1.98kgf |
| MCT0112 | φ12x7 | Vertical radius | Not plating | 28 | 375ｍT | 2.78kgf |
| MCT0113 | φ12x8 | Vertical radius | Not plating | 28 | 394ｍT | 3.09kgf |
| MCT0114 | φ12x10 | Vertical radius | Not plating | 28 | 422ｍT | 3.54kgf |
| MCT0115 | φ12x15 | Vertical radius | Not plating | 28 | 456ｍT | 4.15kgf |
| MCT0116 | φ12x50 | Vertical radius | Not plating | 28 | 489ｍT | 4.75kgf |
| MCT0117 | φ12.5x1.5 | Vertical radius | Not plating | 28 | 120ｍT | 0.78kgf |
| MCT0118 | φ12.5x3 | Vertical radius | Not plating | 28 | 219ｍT | 1.67kgf |
| MCT0119 | φ14x5 | Vertical radius | Not plating | 28 | 293ｍT | 2.42kgf |
| MCT0120 | φ14x10 | Vertical radius | Not plating | 28 | 408ｍT | 4.42kgf |
| MCT0121 | φ14x50 | Vertical radius | Not plating | 28 | 493ｍT | 6.45kgf |
| MCT0122 | φ15x3 | Vertical radius | Not plating | 28 | 190ｍT | 2.07kgf |
| MCT0123 | φ15x5 | Vertical radius | Not plating | 28 | 281ｍT | 2.79kgf |
| MCT0124 | φ15x10 | Vertical radius | Not plating | 28 | 400ｍT | 4.84kgf |
| MCT0125 | φ17.5x3.5 | Vertical radius | Not plating | 28 | 191ｍT | 2.82kgf |
| MCT0126 | φ20x3 | Vertical radius | Not plating | 28 | 149ｍT | 2.68kgf |
| MCT0127 | φ20x5 | Vertical radius | Not plating | 28 | 231ｍT | 4.44kgf |
| MCT0128 | φ32x7 | Vertical radius | Not plating | 28 | 209ｍT | 10.28kgf |
Samarium-Cobalt Magnet (Sm-Co) Ring Shape
| Product code | Dimensions (mm)(dimensions order) | Magnetization direction | Surface treatment | Grade | Surface Magnetic Flux Density | Attraction |
|---|---|---|---|---|---|---|
| MCR0001 | Φ1.25xΦ0.35x0.45 | Horizontal radius | Not plating | 28 | 111ｍT | - |
| MCR0002 | Φ1.6xΦ0.8x3 | Vertical radius | Not plating | 28 | 127ｍT | 0.04kgf |
| MCR0003 | Φ2.4xΦ1.3x4 | Vertical radius | Not plating | 28 | 170ｍT | 0.1kgf |
| MCR0004 | Φ3xΦ1.85x3 | Vertical radius | Not plating | 28 | 168ｍT | 0.13kgf |
| MCR0005 | Φ6xΦ3x3 | Vertical radius | Not plating | 28 | 280ｍT | 0.6kgf |
| MCR0006 | Φ6xΦ3.25x4 | Vertical radius | Not plating | 28 | 288ｍT | 0.62kgf |
| MCR0007 | Φ6.5xΦ3.5x2 | Vertical radius | Not plating | 28 | 250ｍT | 0.55kgf |
| MCR0008 | Φ8xΦ3.8x2 | Vertical radius | Not plating | 28 | 259ｍT | 0.75kgf |
| MCR0009 | Φ8.5xΦ4.1x1.2 | Horizontal radius | Not plating | 28 | 264ｍT | - |
| MCR0010 | Φ9xΦ4x17 | Vertical radius | Not plating | 28 | 398ｍT | 1.96kgf |
| MCR0011 | Φ9.5xΦ5.1x1.5 | Horizontal radius | Not plating | 28 | 281ｍT | - |
| MCR0012 | Φ9.7xΦ3.1x15 | Horizontal radius | Not plating | 28 | 399ｍT | - |
| MCR0013 | Φ9.7xΦ6x6 | Vertical radius | Not plating | 28 | 332ｍT | 1.49kgf |
| MCR0014 | Φ10xΦ2.8x6.5 | Vertical radius | Not plating | 28 | 374ｍT | 2.17kgf |
| MCR0015 | Φ10xΦ3x1.5 | Vertical radius | Not plating | 28 | 201ｍT | 0.81kgf |
| MCR0016 | Φ10.6xΦ7.6x0.9 | Vertical radius | Not plating | 28 | 176ｍT | 0.51kgf |
| MCR0017 | Φ11xΦ7x1 | Vertical radius | Not plating | 28 | 183ｍT | 0.56kgf |
| MCR0018 | Φ12xΦ5x4 | Vertical radius | Not plating | 28 | 323ｍT | 2.14kgf |
| MCR0019 | Φ12xΦ7x3 | Vertical radius | Not plating | 28 | 297ｍT | 1.7kgf |
| MCR0020 | Φ14xΦ4x3 | Vertical radius | Not plating | 28 | 263ｍT | 1.89kgf |
| MCR0021 | Φ14xΦ9x1 | Vertical radius | Not plating | 28 | 173ｍT | 0.93kgf |
| MCR0022 | Φ14xΦ9x7 | Vertical radius | Not plating | 28 | 359ｍT | 2.91kgf |
| MCR0023 | Φ14xΦ9x8 | Vertical radius | Not plating | 28 | 366ｍT | 3kgf |
| MCR0024 | Φ15xΦ3x5 | Vertical radius | Not plating | 28 | 319ｍT | 3.23kgf |
| MCR0025 | Φ15.5xΦ8x2.6 | Horizontal radius | Not plating | 28 | 345ｍT | - |
| MCR0026 | Φ16xΦ5x3 | Vertical radius | Not plating | 28 | 251ｍT | 2.17kgf |
| MCR0027 | Φ17xΦ5x5 | Vertical radius | Not plating | 28 | 316ｍT | 3.87kgf |
| MCR0028 | Φ19xΦ15x1.8 | Vertical radius | Not plating | 28 | 245ｍT | 1.94kgf |
| MCR0029 | Φ20xΦ7x4 | Vertical radius | Not plating | 28 | 274ｍT | 3.79kgf |
| MCR0030 | Φ21xΦ14x3 | Vertical radius | Not plating | 28 | 286ｍT | 3.48kgf |
| MCR0031 | Φ24xΦ15x7 | Horizontal radius | Not plating | 28 | 364ｍT | - |
| MCR0032 | Φ30xΦ15.5x5 | Vertical radius | Not plating | 28 | 291ｍT | 7.91kgf |
| MCR0033 | Φ36xΦ28x5 | Vertical radius | Not plating | 28 | 335ｍT | 9.5kgf |
| MCR0034 | Φ38xΦ14x6 | Vertical radius | Not plating | 28 | 254ｍT | 10.59kgf |
| MCR0035 | Φ40xΦ17.5x3 | Vertical radius | Not plating | 28 | 159ｍT | 6.54kgf |
| MCR0036 | Φ45.5xΦ38x15 | Vertical radius | Not plating | 28 | 408ｍT | 17.17kgf |
| MCR0037 | Φ50xΦ28x5 | Vertical radius | Not plating | 28 | 236ｍT | 16.45kgf |
| MCR0038 | Φ52xΦ42x10 | Vertical radius | Not plating | 28 | 389ｍT | 21.81kgf |
Samarium-Cobalt Magnet (Sm-Co) Square Shape
| Product code | Dimensions (mm)(dimensions order) | Magnetization direction | Surface treatment | Grade | Surface Magnetic Flux Density | Attraction |
|---|---|---|---|---|---|---|
| MCK0001 | 1x1x1 | 1mm (Magnetic zation) |
Not plating | 28 | 160ｍT | 0.02kgf |
| MCK0002 | 1.2x1.2x5 | 5mm (Magnetic zation) |
Not plating | 28 | 229ｍT | 0.05kgf |
| MCK0003 | 1.8x0.6x3.6 | 3.6mm (Magnetic zation) |
Not plating | 28 | 174ｍT | 0.32kgf |
| MCK0004 | 2x1.2x1.2 | 1.2mm (Magnetic zation) |
Not plating | 28 | 214ｍT | 0.06kgf |
| MCK0005 | 2x2x3 | 3mm (Magnetic zation) |
Not plating | 28 | 303ｍT | 0.13kgf |
| MCK0006 | 2x2x4 | 4mm (Magnetic zation) |
Not plating | 28 | 313ｍT | 0.14kgf |
| MCK0007 | 3x1x3.4 | 3.4mm (Magnetic zation) |
Not plating | 28 | 250ｍT | 0.1kgf |
| MCK0008 | 3x2x0.7 | 0.7mm (Magnetic zation) |
Not plating | 28 | 172ｍT | 0.08kgf |
| MCK0009 | 3x2x3 | 3mm (Magnetic zation) One sided 2-pole |
Not plating | 28 | 222ｍT | 0.11kgf |
| MCK0010 | 3.3x2.8x1.4 | 1.4mm (Magnetic zation) |
Not plating | 28 | 252ｍT | 0.15kgf |
| MCK0011 | 4x1.2x2 | 2mm (Magnetic zation) |
Not plating | 28 | 250ｍT | 0.13kgf |
| MCK0012 | 4x2.5x7.5 | 7.5mm (Magnetic zation) |
Not plating | 28 | 377ｍT | 0.37kgf |
| MCK0013 | 4x4x1 | 1mm (Magnetic zation) |
Not plating | 28 | 182ｍT | 0.2kgf |
| MCK0014 | 4x4x2 | 2mm (Magnetic zation) |
Not plating | 28 | 284ｍT | 0.29kgf |
| MCK0015 | 4.2x2.9x1 | 1mm (Magnetic zation) |
Not plating | 28 | 196ｍT | 0.17kgf |
| MCK0016 | 5x1x5 | 5mm (Magnetic zation) |
Not plating | 28 | 262ｍT | 0.17kgf |
| MCK0017 | 5x4x0.8 | 0.8mm (Magnetic zation) |
Not plating | 28 | 143ｍT | 0.18kgf |
| MCK0018 | 5x5x10 | 10mm (Magnetic zation) |
Not plating | 28 | 425ｍT | 0.94kgf |
| MCK0019 | 6x1x3 | 3mm (Magnetic zation) |
Not plating | 28 | 245ｍT | 0.19kgf |
| MCK0020 | 6x1x3.4 | 3.4mm (Magnetic zation) |
Not plating | 28 | 250ｍT | 0.19kgf |
| MCK0021 | 6x1.6x1.5 | 1.5mm (Magnetic zation) |
Not plating | 28 | 240ｍT | 0.19kgf |
| MCK0022 | 6x1.6x2 | 2mm (Magnetic zation) |
Not plating | 28 | 267ｍT | 0.23kgf |
| MCK0023 | 6x4x16 | 16mm (Magnetic zation) |
Not plating | 28 | 430ｍT | 0.95kgf |
| MCK0024 | 6x6x1.5 | 1.5mm (Magnetic zation) |
Not plating | 28 | 195ｍT | 0.46kgf |
| MCK0025 | 6x6x2 | 2mm (Magnetic zation) |
Not plating | 28 | 240ｍT | 0.54kgf |
| MCK0026 | 6.5x4x10 | 10mm (Magnetic zation) |
Not plating | 28 | 421ｍT | 0.98kgf |
| MCK0027 | 6.8x3.8x2 | 2mm (Magnetic zation) |
Not plating | 28 | 263ｍT | 0.42kgf |
| MCK0028 | 7x5x7 | 7mm (Magnetic zation) |
Not plating | 28 | 408ｍT | 1.17kgf |
| MCK0029 | 7x7x5 | 5mm (Magnetic zation) |
Not plating | 28 | 367ｍT | 1.25kgf |
| MCK0030 | 8x4x9 | 9mm (Magnetic zation) |
Not plating | 28 | 417ｍT | 1.16kgf |
| MCK0031 | 8x8x0.8 | 0.8mm (Magnetic zation) |
Not plating | 28 | 89ｍT | 0.26kgf |
| MCK0032 | 9.5x8x4 | 4mm (Magnetic zation) |
Not plating | 28 | 307ｍT | 1.28kgf |
| MCK0033 | 9.8x1.9x1.15 | 1.15mm (Magnetic zation) |
Not plating | 28 | 205ｍT | 0.41kgf |
| MCK0034 | 10x3x3 | 3mm (Magnetic zation) |
Not plating | 28 | 312ｍT | 0.68kgf |
| MCK0035 | 10x5x1 | 1mm (Magnetic zation) |
Not plating | 28 | 131ｍT | 0.41kgf |
| MCK0036 | 10x5x5 | 5mm (Magnetic zation) |
Not plating | 28 | 364ｍT | 1.3kgf |
| MCK0037 | 10x6.5x4 | 4mm (Magnetic zation) |
Not plating | 28 | 319ｍT | 1.22kgf |
| MCK0038 | 10x6.5x4 | 4mm (Magnetic zation) |
Not plating | 28 | 319ｍT | 1.22kgf |
| MCK0039 | 10.3x3x7 | 7mm (Magnetic zation) |
Not plating | 28 | 387ｍT | 1.06kgf |
| MCK0040 | 10.4x7x8 | 8mm (Magnetic zation) |
Not plating | 28 | 407ｍT | 2.23kgf |
| MCK0041 | 11.3x3x7 | 7mm (Magnetic zation) |
Not plating | 28 | 386ｍT | 1.15kgf |
| MCK0042 | 12x2x1 | 1mm (Magnetic zation) |
Not plating | 28 | 187ｍT | 0.52kgf |
| MCK0043 | 12x7x3 | 3mm (Magnetic zation) |
Not plating | 28 | 254ｍT | 1.36kgf |
| MCK0044 | 13x1.3x1.3 | 1.3mm (Magnetic zation) |
Not plating | 28 | 207ｍT | 0.47kgf |
| MCK0045 | 13x3.4x2.5 | 2.5mm (Magnetic zation) |
Not plating | 28 | 279ｍT | 0.9kgf |
| MCK0046 | 13x4.4x2.3 | 2.3mm (Magnetic zation) |
Not plating | 28 | 250ｍT | 1.08kgf |
| MCK0047 | 13x5x5 | 5mm (Magnetic zation) |
Not plating | 28 | 354ｍT | 1.59kgf |
| MCK0048 | 14x8x3.5 | 3.5mm (Magnetic zation) |
Not plating | 28 | 259ｍT | 1.83kgf |
| MCK0049 | 14.5x10x4.5 | 4.5mm (Magnetic zation) |
Not plating | 28 | 280ｍT | 2.34kgf |
| MCK0050 | 15x5x3 | 3mm (Magnetic zation) |
Not plating | 28 | 275ｍT | 1.45kgf |
| MCK0051 | 15x10x5 | 5mm (Magnetic zation) |
Not plating | 28 | 297ｍT | 2.41kgf |
| MCK0052 | 16x2.3x1.5 | 1.5mm (Magnetic zation) |
Not plating | 28 | 227ｍT | 0.94kgf |
| MCK0053 | 16x5x30 | 30mm (Magnetic zation) |
Not plating | 28 | 457ｍT | 3.22kgf |
| MCK0054 | 16x5x30 | 30mm (Magnetic zation) |
Not plating | 28 | 457ｍT | 3.22kgf |
| MCK0055 | 16x6.3x9.5 | 9.5mm (Magnetic zation) |
Not plating | 28 | 412ｍT | 3.17kgf |
| MCK0056 | 16x6.4x2.2 | 2.2mm (Magnetic zation) |
Not plating | 28 | 201ｍT | 1.5kgf |
| MCK0057 | 18x5x4 | 4mm (Magnetic zation) |
Not plating | 28 | 312ｍT | 1.73kgf |
| MCK0058 | 20x8x5 | 5mm (Magnetic zation) |
Not plating | 28 | 303ｍT | 2.9kgf |
| MCK0059 | 20x10x2 | 2mm (Magnetic zation) |
Not plating | 28 | 137ｍT | 1.65kgf |
| MCK0060 | 20x10x5 | 5mm (Magnetic zation) |
Not plating | 28 | 280ｍT | 3.45kgf |
| MCK0061 | 20x10x20 | 20mm (Magnetic zation) |
Not plating | 28 | 458ｍT | 7.26kgf |
| MCK0062 | 20x12x5 | 5mm (Magnetic zation) |
Not plating | 28 | 260ｍT | 3.88kgf |
| MCK0063 | 20x15x5 | 5mm (Magnetic zation) |
Not plating | 28 | 237ｍT | 4.4kgf |
| MCK0064 | 20x20x10 | 10mm (Magnetic zation) |
Not plating | 28 | 338ｍT | 7.5kgf |
| MCK0065 | 22x3x7 | 7mm (Magnetic zation) |
Not plating | 28 | 373ｍT | 2.1kgf |
| MCK0066 | 22x5x4 | 4mm (Magnetic zation) |
Not plating | 28 | 307ｍT | 2.38kgf |
| MCK0067 | 22x22x12 | 12mm (Magnetic zation) |
Not plating | 28 | 355ｍT | 9.95kgf |
| MCK0068 | 23x3x7 | 7mm (Magnetic zation) |
Not plating | 28 | 372ｍT | 2.19kgf |
| MCK0069 | 25x5.5x10 | 10mm (Magnetic zation) |
Not plating | 28 | 405ｍT | 4.28kgf |
| MCK0070 | 25x15x3 | 3mm (Magnetic zation) |
Not plating | 28 | 145ｍT | 3.21kgf |
| MCK0071 | 25x15x5 | 5mm (Magnetic zation) |
Not plating | 28 | 223ｍT | 5.38kgf |
| MCK0072 | 25.5x6.5x13 | 13mm (Magnetic zation) |
Not plating | 28 | 425ｍT | 5.48kgf |
| MCK0073 | 25.5x13x6.5 | 6.5mm (Magnetic zation) |
Not plating | 28 | 285ｍT | 5.71kgf |
| MCK0074 | 30x5x6 | 6mm (Magnetic zation) |
Not plating | 28 | 353ｍT | 3.65kgf |
| MCK0075 | 30x16x5 | 5mm (Magnetic zation) |
Not plating | 28 | 207ｍT | 6.51kgf |
| MCK0076 | 30x23.5x16 | 16mm (Magnetic zation) |
Not plating | 28 | 376ｍT | 16.08kgf |
| MCK0077 | 30x30x10 | 10mm (Magnetic zation) |
Not plating | 28 | 265ｍT | 13.88kgf |
| MCK0078 | 30x30x20 | 20mm (Magnetic zation) |
Not plating | 28 | 393ｍT | 22.3kgf |
| MCK0079 | 30.5x26.5x10 | 10mm (Magnetic zation) |
Not plating | 28 | 275ｍT | 12.71kgf |
| MCK0080 | 34.6x3x7 | 7mm (Magnetic zation) |
Not plating | 28 | 368ｍT | 3.23kgf |
| MCK0081 | 38x38x18 | 18mm (Magnetic zation) |
Not plating | 28 | 334ｍT | 25.57kgf |
| MCK0082 | 42x2x3 | 3mm (Magnetic zation) |
Not plating | 28 | 291ｍT | 2.97kgf |
| MCK0083 | 42.6x3x7 | 7mm (Magnetic zation) |
Not plating | 28 | 366ｍT | 3.94kgf |
| MCK0084 | 43.6x3x7 | 7mm (Magnetic zation) |
Not plating | 28 | 366ｍT | 4.03kgf |
| MCK0085 | 45x8x8 | 8mm (Magnetic zation) |
Not plating | 28 | 350ｍT | 7.99kgf |
| MCK0086 | 45x35x3 | 3mm (Magnetic zation) |
Not plating | 28 | 71ｍT | 4.43kgf |
| MCK0087 | 48x3x7 | 7mm (Magnetic zation) |
Not plating | 28 | 365ｍT | 4.43kgf |
| MCK0088 | 48x10x12 | 12mm (Magnetic zation) |
Not plating | 28 | 383ｍT | 12.13kgf |
| MCK0089 | 49x3x7 | 7mm (Magnetic zation) |
Not plating | 28 | 365ｍT | 4.52kgf |
| MCK0090 | 50x10x3 | 3mm (Magnetic zation) |
Not plating | 28 | 176ｍT | 7.11kgf |
| MCK0091 | 50x10x5 | 5mm (Magnetic zation) |
Not plating | 28 | 254ｍT | 10.95kgf |
| MCK0092 | 100x10x12 | 12mm (Magnetic zation) |
Not plating | 28 | 372ｍT | 28.31kgf |
